AD-USB4AR36G95

$2,300.00

Stock:

In stock

Quantity:
SKU:
AD-USB4AR36G95
Categories: ,

Description

The AD-USB4AR36G95 is a breakthrough in RF technology price vs. performance, and is available for purchase now.

Features

  • 4 Individually Controlled Channels
  • USB Powered & Controlled
  • Ethernet for Telnet and HTTP Based Control
  • HTTP Webpage GUI
  • 5-6,000Mhz
  • 0.25dB Step Resolution
  • 95dB Attenuation
  • >100dB Interchain Isolation

Quantity pricing available.



HTTP Website Interface

The built in website can be easily accessed across a network without requiring the installation of any desktop applications. It is compatible with any platform or system capable of running a web browser.

Reliable & Accurate

The R3 Series utilizes the latest technologies to insure that every instrument provides repeatable and accurate measurements.





Specifications

Attenuation vs. Frequency over Attenuation settings

Technical Specifications

Attenuation Step Size (dB)0.25
Number of individually controlled RF chains4
Operating Frequency (Mhz)5 - 6,000
Attenuation Range (dB)0 - 95
Input 0.1dB Compression Power (dBm)31
Impedance (Ω)50
IP3 Input (dBm)+56
Attenuation Accuracy (dB) FrequencyConditionsTypicalMax
5 - 2000 Mhz0.25 - 20± 0.25± (5.5% of Atten. + 0.25)
20.25 - 60± 0.50± (2.0% of Atten. + 0.90)
60.25 - 90± 0.75± (3.5% of Atten. + 0.70)
2000 - 4000 Mhz0.25 - 20± 0.20± (5.5% of Atten. + 0.25)
20.25 - 60± 0.30± (2.0% of Atten. + 0.70)
60.25 - 90± 0.40± (3.0% of Atten. + 0.90)
4000 - 6000 Mhz0.25 - 20± 0.15± (6.5% of Atten. + 0.15)
20.25 - 60± 0.35± (3.5% of Atten. + 0.45)
60.25 - 90± 0.65± (3.5% of Atten. + 0.90)
Switching Speed (ns)520
VSWR1 - 500 Mhz1.15:1
500 - 4000 Mhz1.10
4000 - 6000 Mhz1.30
Max Input RF Power (dBm)+28
Power Use (USB) (mA)90
Operating Temperature (°C)0 to 60
CommunicationUSB (Virtual COM Port)
Ethernet (Telnet & HTTP, DHCP & Static IP)
Interchain Isolation
(Chain-to-chain isolation)(dB)
>100
External Isolation (dB)>120
Insertion Loss (dB)TypicalMax
5 - 2400 Mhz4.25.0
2400 Mhz6.36.5
6000 Mhz10.913.0



Downloads

Datasheet
Datasheet AD-USB4AR36G95 Rev5A (modified 9/17/2019) – Adobe PDF File – 574 KB

Instruction Manual
R3 Series Instruction Manual Rev. D1 – Adobe PDF File – 805 KB

Sample Scripts
AdauraTech Sample Scripts – Zip – 14,652 KB
Java, Python, VC#, VC++, VB.NET, LabVIEW, PowerShell

Linux Console GUI
AdauraTech Linux Console – Zip – 191 KB

Windows Desktop GUI Application V5.71
Date: 8/09/2019
Adauratech Attenuation Control V5.71.zip – Zip – 512KB
Completely redesigned application coming soon!

Windows Driver
Date: 4/08/2019
Win_Driver_AD-USB4AR36G95 – Zip – 7 KB

Firmware Bootloader 2.0
AdauraTech Firmware Bootloader 2.0 – Zip – 149 KB

Firmware Update
Version:
1.25
Date: 8/09/2019
Bootloader Ver: 2.0
AD-USB4AR36G95_FW125_BL200 – Zip – 145 KB
*Note: Please check your bootloader version before updating.

Firmware Update
Version:
1.25
Date: 8/09/2019
Bootloader Ver: 3.0
AD-USB4AR36G95_FW125_BL300 – Zip – 145 KB
*Note: Please check your bootloader version before updating.

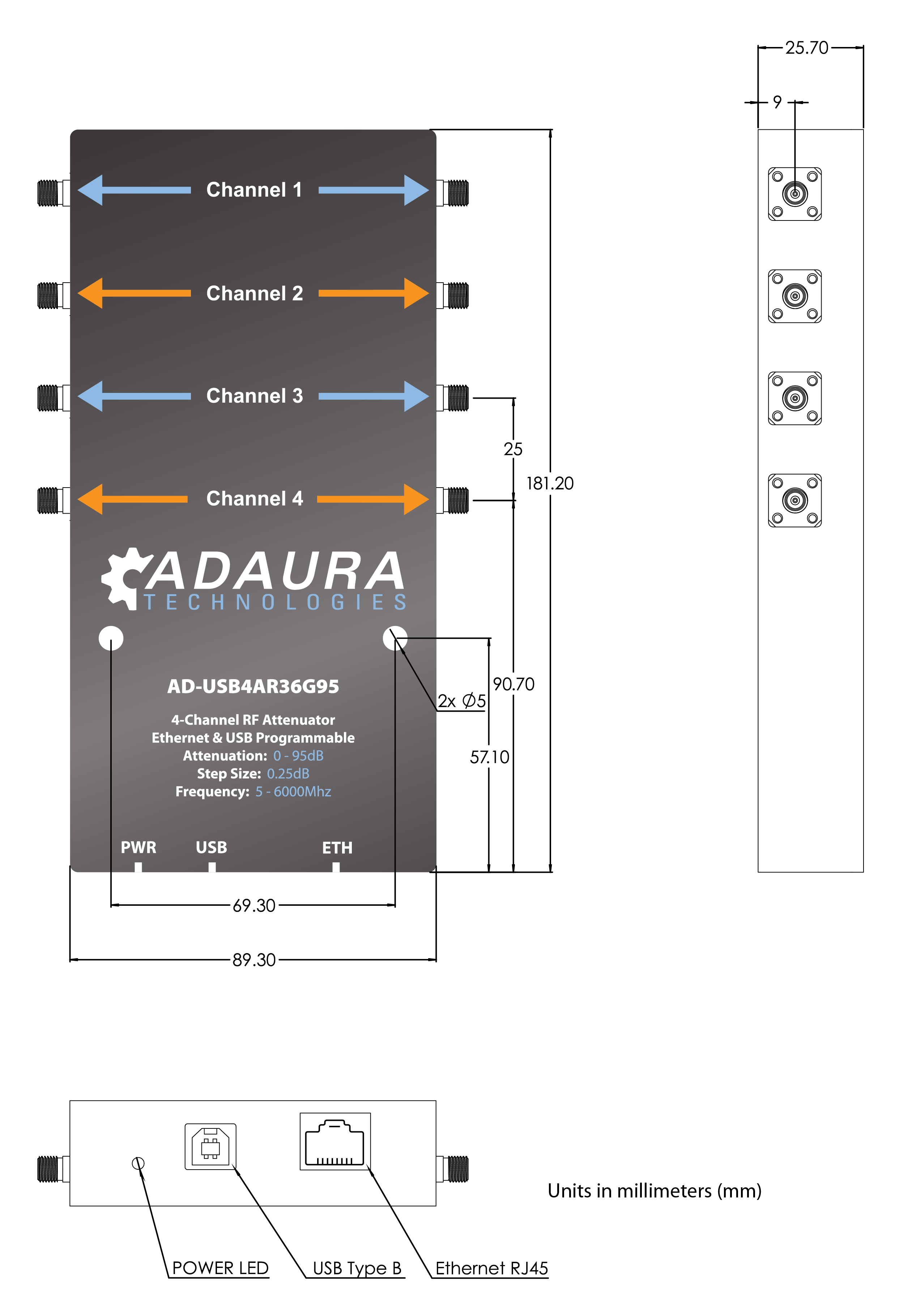

Mechanical Design

Request Quotation

Request Quotation
