Description
Key Features
Provides 10/100/1000 Mbps Ethernet pass-through with RF rejection.
Four internal differential filters for each pair of data lines.
(GigE+USB) Provides one port 10/100/1000 Mbps Ethernet pass-through and one port of USB 2.0 with RF isolation.
(GigE+USB) One internal differential filter for USB 2.0 data and a low pass filter for USB +5V power.
Compatible with POE A and B devices.
Only one cut out required for dual Ethernet connectors installation.
Simple four mounting screws for chassis mounting.
Description
RF leakage through Ethernet and USB cables can destroy even the best RF enclosures and chambers. The need for filtering in the ever congested RF environment requires special filters that can pass USB 2.0 and 10/100/1000 Mbps Ethernet signals and filter out unwanted higher frequencies such as cellular and WiFi. The Adaura Technologies USB/Gigabit Filters provide one GigE and one USB 2.0 pass-through connections while filtering out other RF up to 8GHz. It has a small form factor to allow easy installation. It is a most cost effective solution for a clean chamber set up. In a typical chamber, WiFi signals are reduced to <-100dBm with this filter installed.
Technical Specifications
Specifications Dual Gigabit Ethernet
| Dual Gigabit pass-through | |
|---|---|
| Number of Gigabit pass-through | 2 |
| Connectors | Shielded RJ45 |
| Data lines | 4 pairs |
| Insertion Loss 400MHz | -3dB typical |
| Insertion Loss 900MHz | -40dB typical |
| Insertion Loss 2400MHz | -65dB typical |
| Insertion Loss 6000MHz | -65dB typical |
| POE | Transparent A and B mode |
Specifications USB 2.0 + Gigabit Ethernet
| USB2.0 & Gigabit Ethernet | |
|---|---|
| Number of Gigabit pass-through pairs | 1 |
| Number of USB2.0 pass-through pairs | 1 |
| Connectors | Shielded RJ45, USB Type A, USB Type B |
| Data lines | 4 pairs |
| Insertion Loss 400MHz | -3dB typical |
| Insertion Loss 900MHz | -40dB typical |
| Insertion Loss 2400MHz | -65dB typical |
| Insertion Loss 6000MHz | -65dB typical |
| POE | Transparent A and B mode |
Downloads
Please provide your information below to download Datasheet.
Thank you.
Datasheet

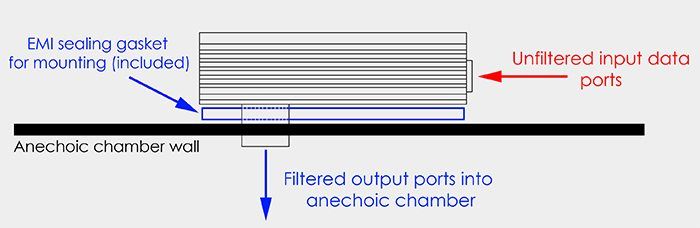

Mechanical Design

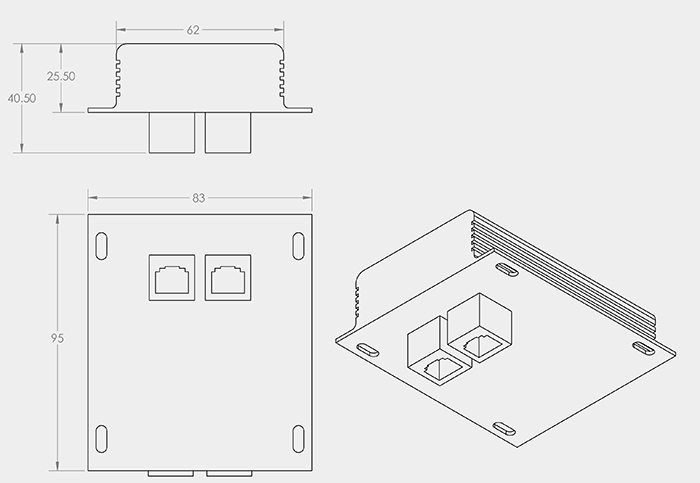

Dimensions in (mm)
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Config | Dual Gigabit Ethernet, Gigabit Ethernet + USB 2.0 |
