RF Power Dividers

$97.00$326.00

2-Year Warranty

SKU: AD-PD Category:

Description

Key Features

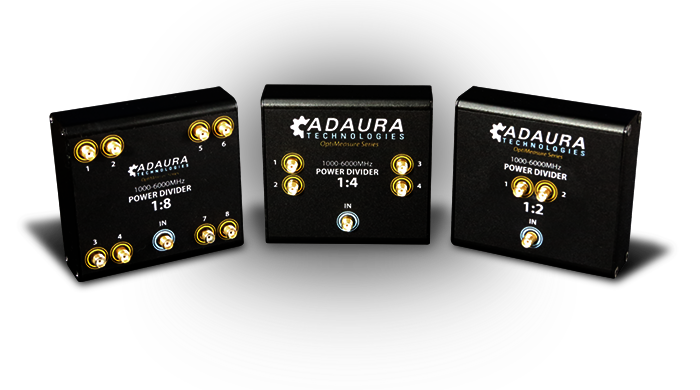

  • 1 GHz to 6 GHz In-phase Power Splitting

  • 0.3 dB Typical Excess Insertion Loss

  • Outstanding Phase and Amplitude Balance

  • 50 ohm

Technical Specifications

Parameter Frequency Range Min Type Max
Nominal Power Splitting (dB) 1 to 6 GHz 3, 6, 9 for
2, 4, 8 Way
respectively
Excess Insertion Loss (dB)1 1 to 6 GHz 0.3 1
Nominal Phase Shift (Degrees) 1 to 6 GHz 0
Amplitude Balance (dB) 1 to 6 GHz ±0.1 ±0.5
Phase Balance (Degrees) 1 to 6 GHz ±1 ±5
VSWR 1 to 6 GHz 1.2 1.8
Input Power (Watt) 1 to 6 GHz 1
Weight (g) 1 to 6 GHz 10.5

1Excess Insertion Loss = (Common Port to Output Port Insertion Loss in addition to power splitting) 1dB max at 6 GHz. All ports terminated with 50 ohm loads.

Downloads

Please provide your information below to download Datasheet.

    Thank you.

    Datasheet

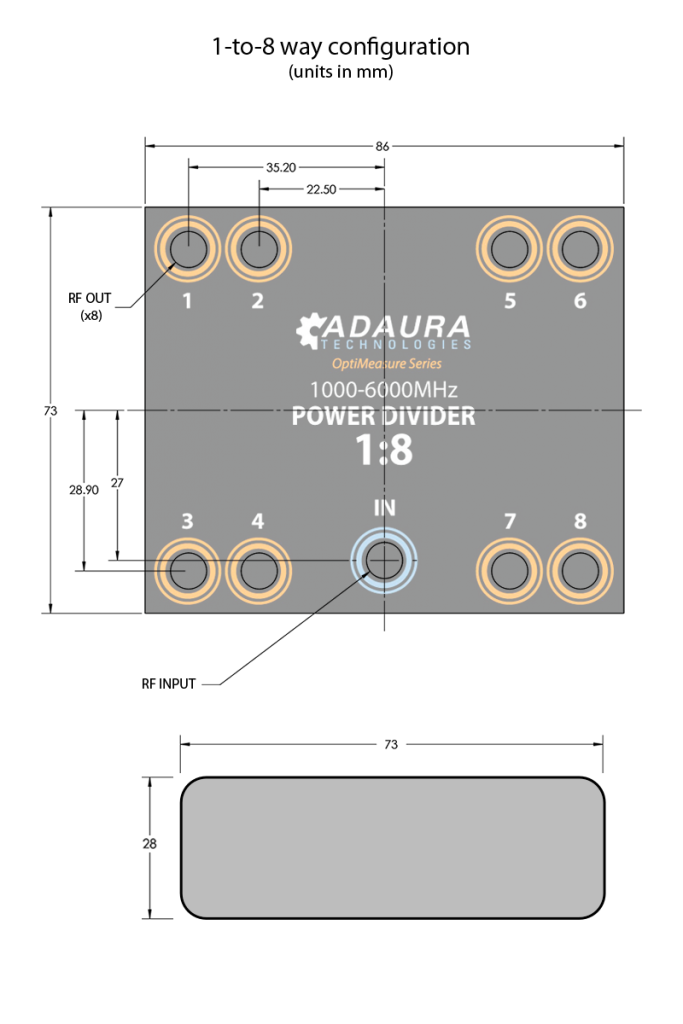

    Mechanical Design

    You may also like…

    Additional information

    Weight 0.6 lbs
    Dimensions 6 × 4 × 2 in
    Config

    1 to 2 way, 1 to 4 way, 1 to 8 way
